Designed for mining applications, the ISOLOK SAL-Q sampler collects samples to ensure you are obtaining quality products and making intelligent decisions.
Designed for mining applications, the ISOLOK SAL-Q sampler collects samples to ensure you are obtaining quality products and making intelligent decisions. This mining sampler employes a Delta double block and bleed valve to isolate the sampler and the operator from the process line.
Using compressed air and a controller, operators can match their sampling needs to their specific purpose.
Using compressed air and a controller, operators can match their sampling needs to their specific purpose.
- Maintenance is simple due to the sampler's plunger extension providing access to seals and wrench flats.
- A variety of customizations are available from port closures, line adapters, differnt containers, and more.
- All SAL-Q products come with a Class IV shuoff, enabling the sampler to be removed whilel the process remains in service.
| Sample volume per cycle | 10 or 25 cc |
| Maximum cycle frequency | 6 strokes per minute, depending on application |
| Maximum particle size | 5 mm (0.2 in.) |
| Line mounting options | Line adapters available in stainless steel; hard facing option available |
| Materials | 316, 431 and 17-4 PH stainless steel |
| Actuator and static seals | FKM, PTFE and NBR |
| Plunger seals | XNBR, EPDM, HNBR or durethane |
| CRN pressure and temperature rating | 720 psi @ 100°F (49.6 bar @ 38°C) 500 psi @ 450°F (34.4 bar @ 232°C) maximum |
| Minimum compressed air requirement recommended range | 60 psig (4.0 bar) 80-100 psig (5.5-6.9 bar) |
| Operating pressure recommended range | 300 psig (20.7 bar) process at 60 psig (4.0 bar) air 400 psig (27.5 bar) process at 80-100 psig (5.5-6.9 bar) air |
| Dimensions | 35.5 in. l x 11 in. h x 5.63 in. w (90 cm. x 28 cm. x 14.3 cm.) |
| Shipping weight | Removable (actuator) portion: 52 lb. (24 kg.) Valve: 29 lbs. (13kg) |
| Canadian Registration Numbers (Alberta only) | Sampler: 0C12012.2 Line Adapter: 0A6872.2 Gate Valve: 0C04023.2 |
Related Resources
Learn more about how the SAL-Q Automatic Isolatable Sampler can benefit your application with the following resources.
Spec Sheets

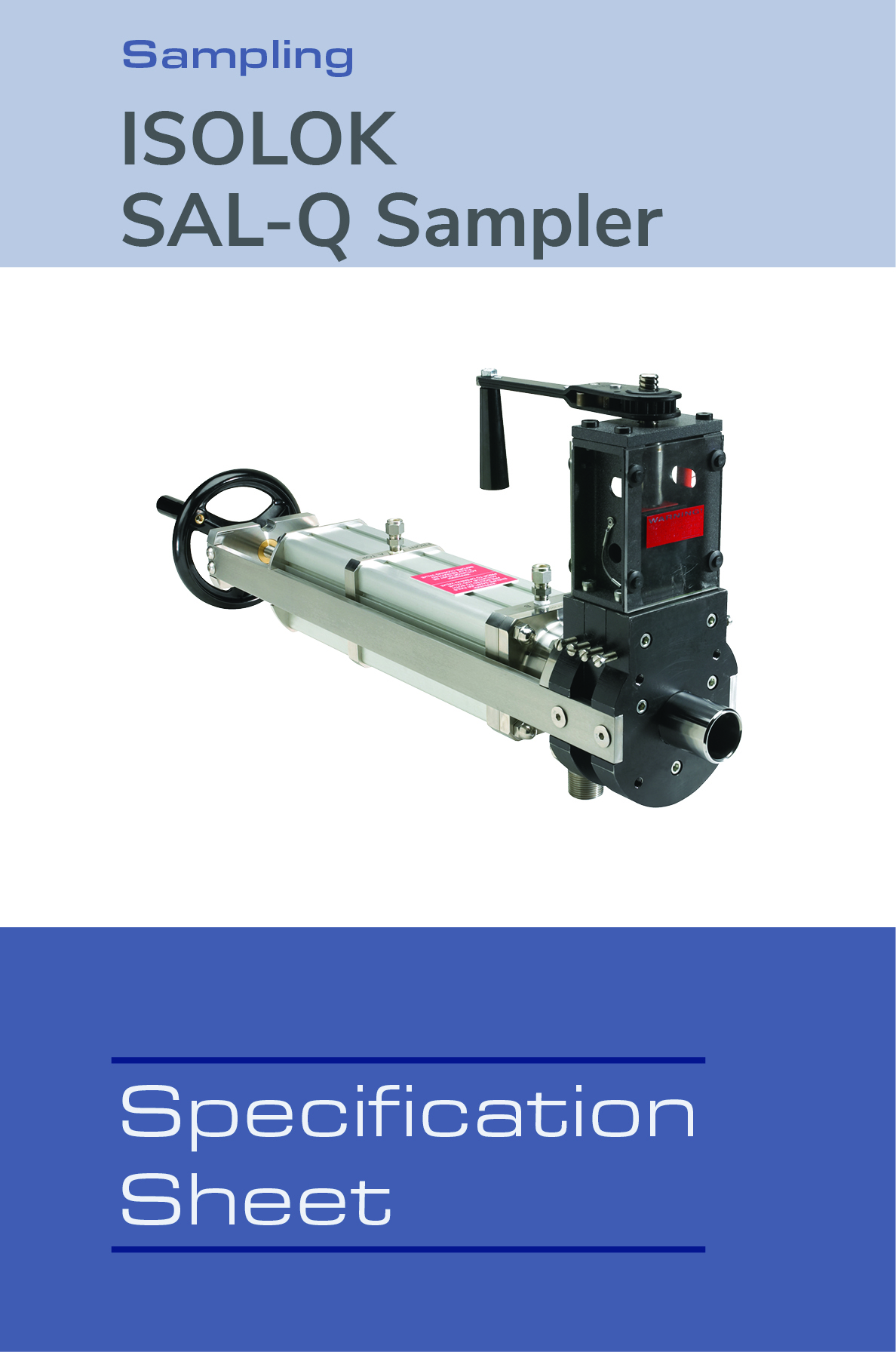

ISOLOK SAL-Q Sampler Spec Sheet
Instruction Manuals

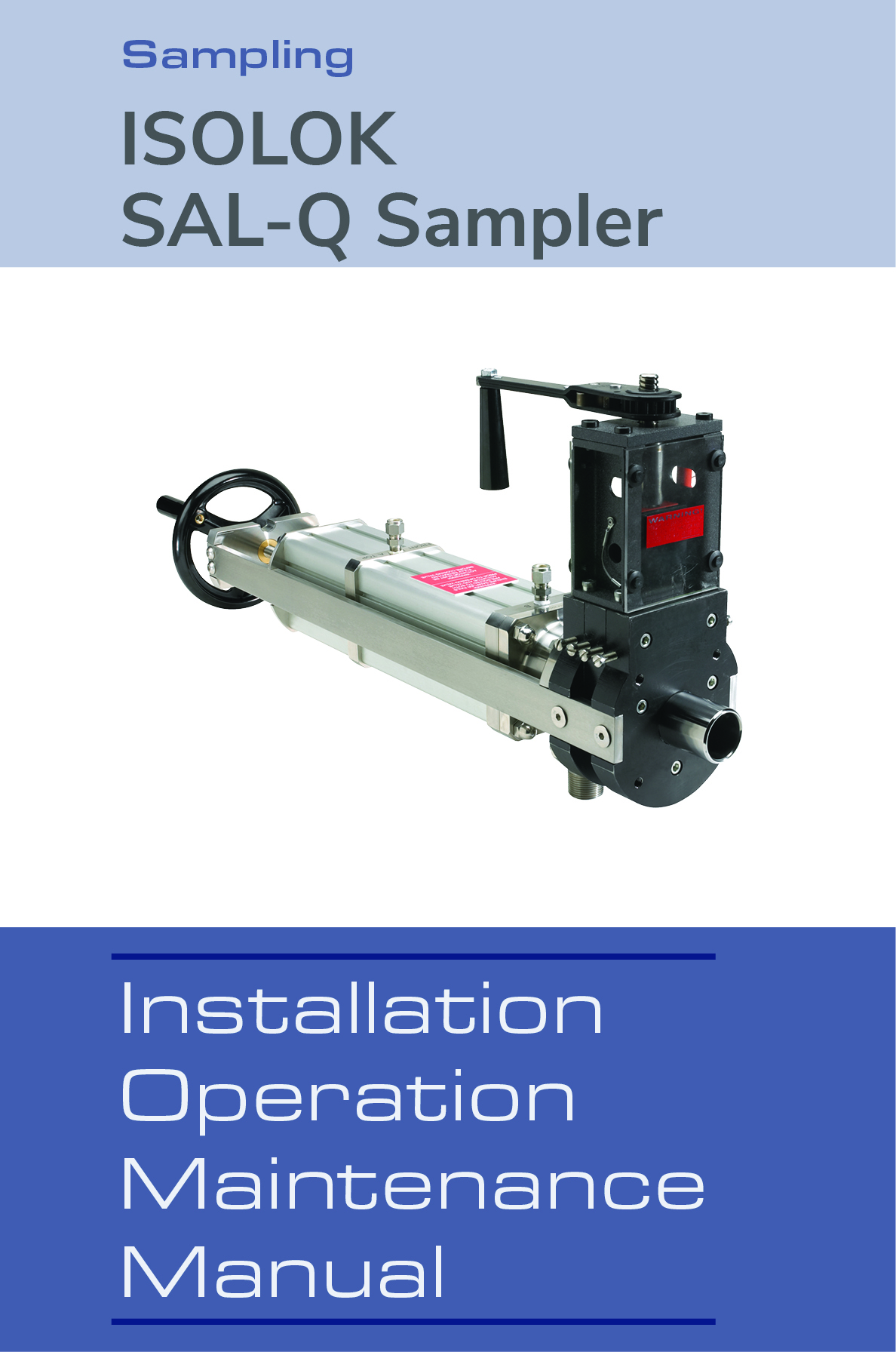

ISOLOK SAL-Q Sampler IOM
