Designed for two-phase liquids with high vapor pressures, the Model MLG LPG Sampler protects both the sample and the operator through a six-port tandem valve and expansion vessel.
This LPG sampler does this by isolating the sample at system pressure during sampling, expanding the sampling cylinder for safety, then purging the excess pressure and gases. The sampler action is repeatable, so the sample is always as representative of the process and accurate as possible.
- Increased accuracy comes from the capability to flush the sample panel and cylinder without discharge to the atmosphere.
- Operation and maintenance is simple with the multi-function tandem valve.
- Additional options include a cylinder relief valve and carbon canisters, ensuring your operators and environment maintain peak safety.
| Wetted Materials | Pressure Range | Temp Range |
|---|---|---|
|
316 stainless steel, PTFE, Viton, Kalrez
|
0-1800 psi | 300°F (149°C) |
Related Resources
Learn more about how the Model MLG Sampler can benefit your application with the following resources.
Spec Sheets

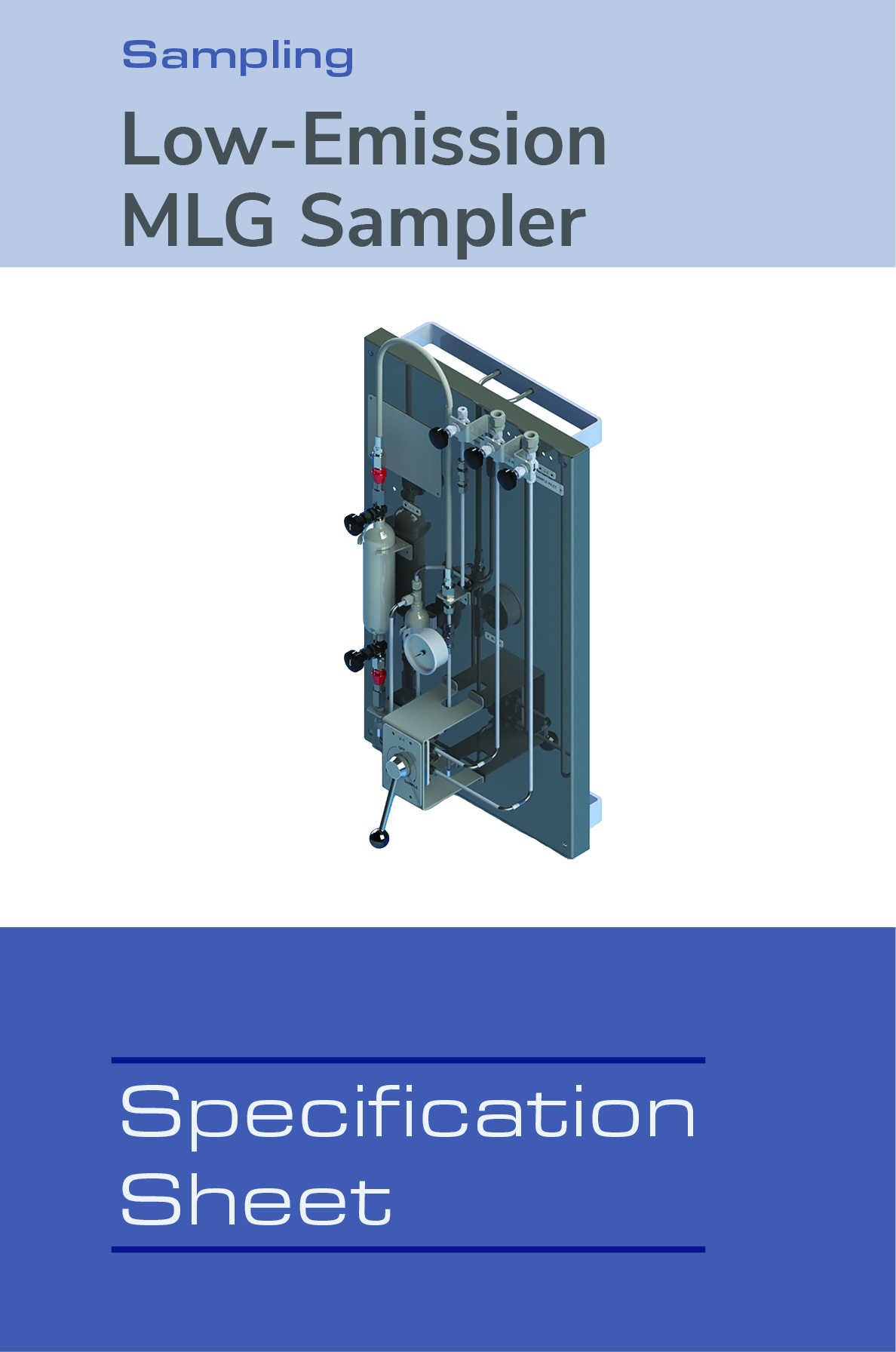

Model MLG Spec Sheet
Instruction Manuals
MLG Sampler Instruction Manual
Marketing Materials
ProShield Oil and Gas Service Brochure
Technical Diagrams
Low-E Application GuideNeed Something Else?
