Designed for liquids and slurries such as acids, petrochemicals, and waste effluents, the ISOLOK SAA slurry sampler ensures that your samples are representative of your entire process and operators are protected from potentially hazardous products
Designed for liquids and slurries such as acids, petrochemicals, and waste effluents, the ISOLOK SAA slurry sampler ensures that your samples are representative of your entire process and operators are protected from potentially hazardous products. This automatic sampler is made with 216 Stainless Steel, components to meet different process applications.
The ISOLOK sampler's design uses compressed air and an electrical controller to force a plunger into up to 200 psi (13.8) pressurized processes for complete representative sampling.
The ISOLOK sampler's design uses compressed air and an electrical controller to force a plunger into up to 200 psi (13.8) pressurized processes for complete representative sampling.
- This ISOLOK SAA slurry sampler has a variety of options such as various sampler construction and seal materials, port closures, different container tpes, sample enclosures, etc.
- The mmodular slurry design is avilable with two different sample sizes, 3 cc or 8 cc per sample cycle.
| Sample volume per cycle | 3 or 8 cc |
| Maximum cycle frequency | 12 strokes per minute, depending on application |
| Maximum particle size | 3 mm (3 cc) or 7 mm (8 cc) |
| Line mounting options | MNPS thread, tri-clamp, instrument hub, ANSI flange |
| Materials | 216 stainless steel; other materials available |
| Cylinder seals | Halar®, TFE or custom |
| Plunger seals | TFE, polyurethane, EPDM rubber, Kalrez® or custom |
| Compressed air requirements | 2 SCFM at 80 psig (5.5 barg) to 120 psig (8.3 barg) |
| Dimensions | 10.188 in x 3 in (25.9 cm x 7.6 cm) |
| Shipping weight | 8 to 10 lb (3.5 to 4.5 kg) |
Related Resources
Learn more about how the SAA Automatic Fixed Volume Sampler can benefit your application with the following resources.
Spec Sheets
ISOLOK SAA Sampler Spec Sheet
Instruction Manuals

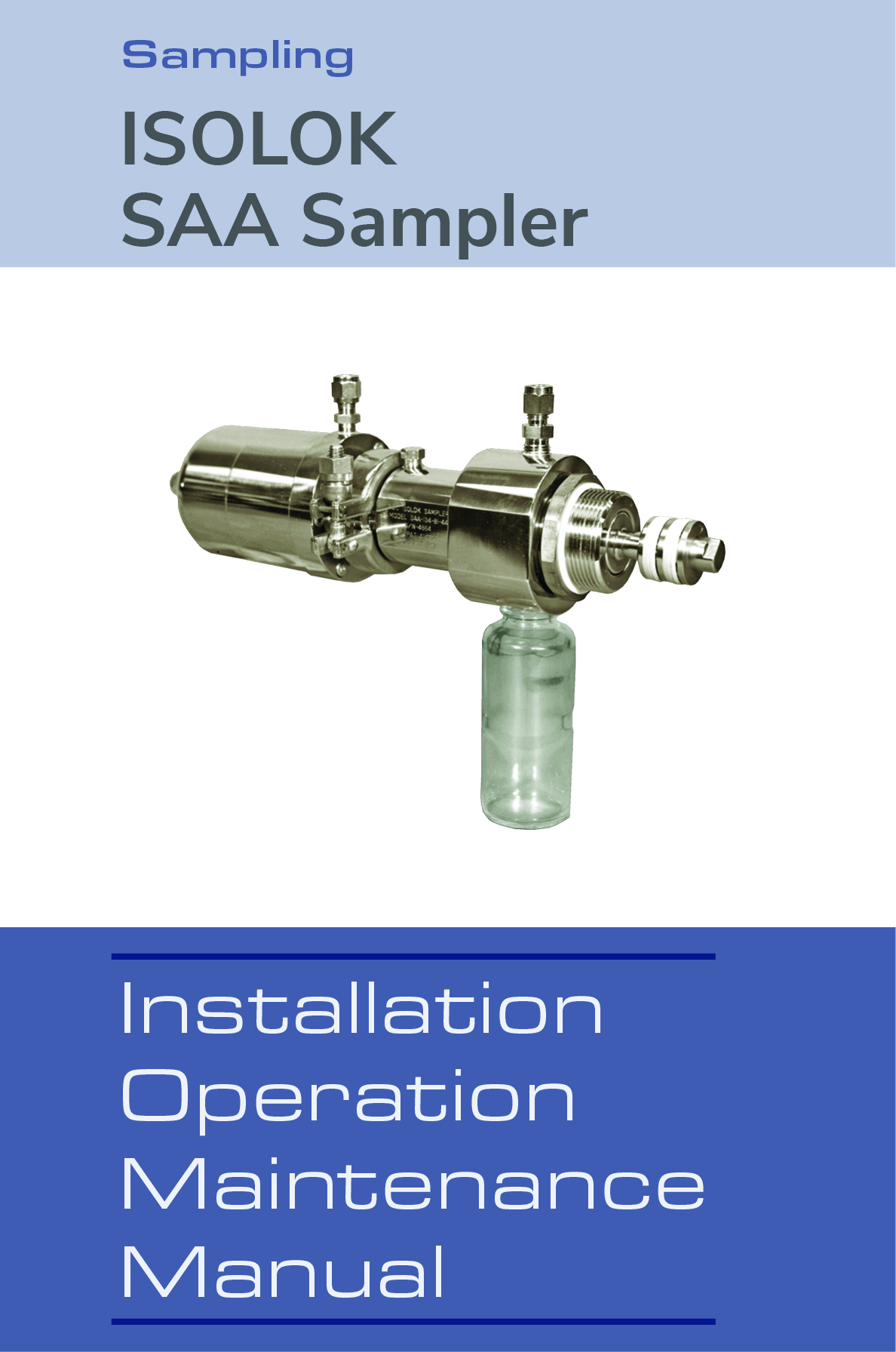

ISOLOK SAA Sampler IOM
