Designed for thick liquids such as bauxite mud and resin bead slurry, the ISOLOK SAB liquid sampler ensures that your samples are representative of your entire process and operators are protected from potentially hazardous products
Designed for thick liquids such as bauxite mud and resin bead slurry, the ISOLOK SAB liquid sampler ensures that your samples are representative of your entire process and operators are protected from potentially hazardous products. This automatic sampler is made with 316 Stainless Steel, components to meet different process applications.
The ISOLOK sampler's design uses compressed air and a controller to force a plunger into up to 300 psi (20.7 bar) pressurized processes for complete representative sampling.
The ISOLOK sampler's design uses compressed air and a controller to force a plunger into up to 300 psi (20.7 bar) pressurized processes for complete representative sampling.
- This ISOLOK SAB liquid sampler has a variety of options as various sampler cinstruction and seal materials, port closures, different container types, sampler enclosures, etc.
- The modular slurry design is available with two different sample sizes, 10 cc or 25 cc per sample cycle.
| Sample volume per cycle | 10 or 25 cc |
| Maximum cycle frequency | 10 strokes per minute, depending on application |
| Maximum particle size | .375 in (9 mm) |
| Line mounting options | MNPS thread, tri-clamp, instrument hub, bolted hub, ANSI flange |
| Materials | 316 stainless steel; other materials available |
| Cylinder seals | Halar®, TFE or custom |
| Plunger seals | TFE, polyurethane, EPDM rubber, Kalrez® or custom |
| Commpressed air requirement | 2 SCFM at 90 psi (.05 m³/minimum at 6.2 bar) |
| Dimensions | 13.19 in x 4 in (33.5 cm x 10 cm) |
| Shipping weight | 28 to 32 lb (12.7 to 14.5 kg) |
Related Resources
Learn more about how the SAB Automatic Fixed Volume Sampler can benefit your application with the following resources.
Spec Sheets
ISOLOK SAB Sampler Spec Sheet
Instruction Manuals

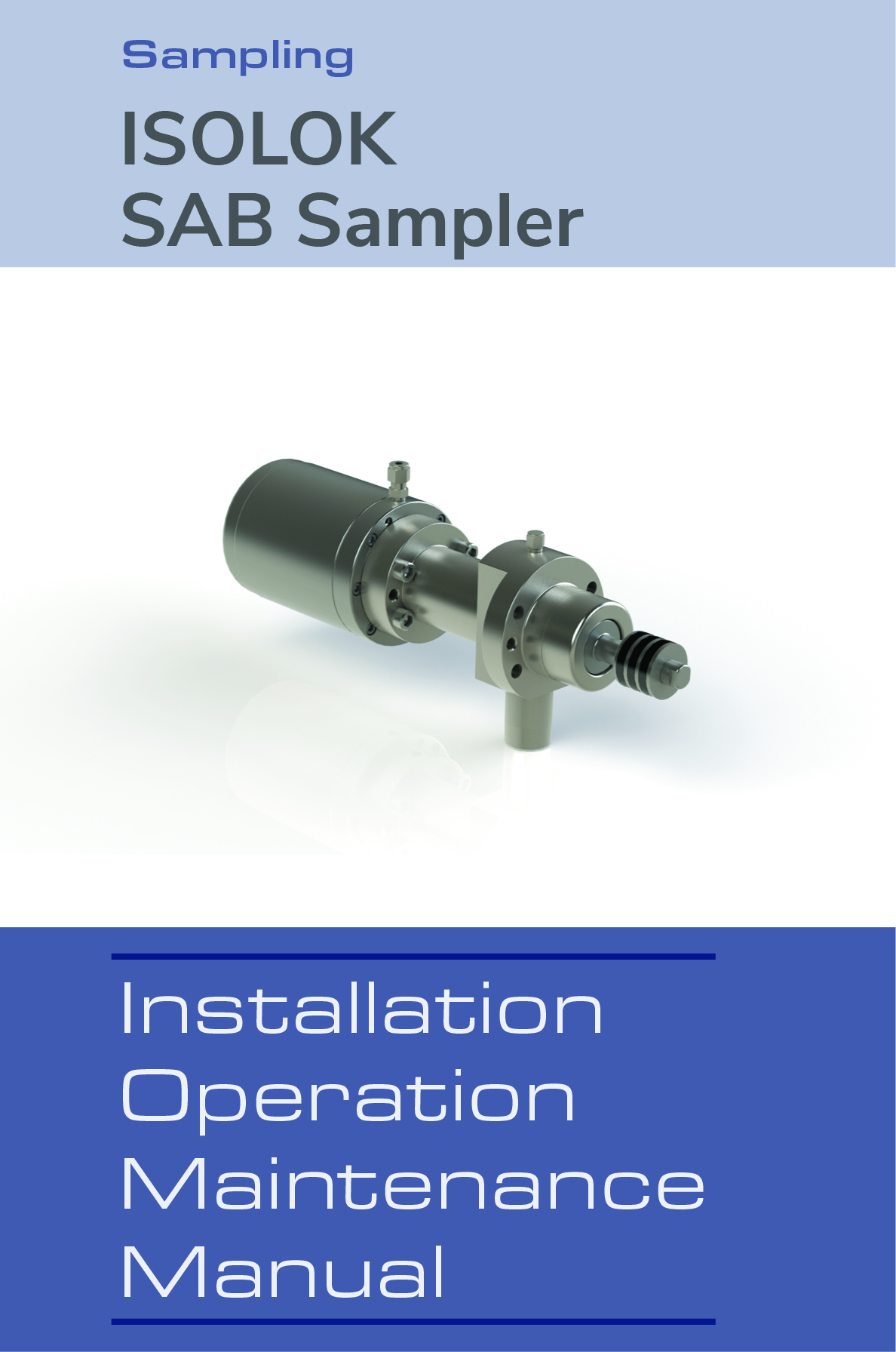

ISOLOK SAB Sampler IOM
